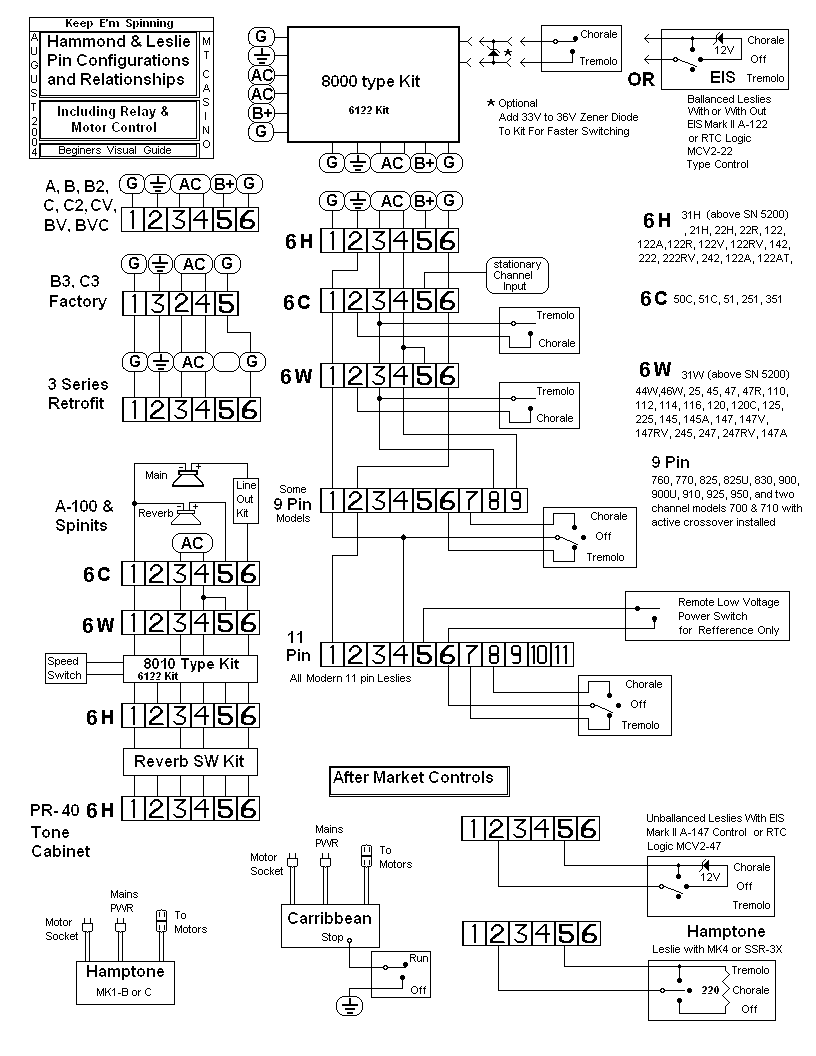

A concise drawing by MikeCasino showing the pinout and speed switching hookup for a number of different Leslie types and after-market speed controllers.

According to Mike, "It's a beginner's guide because you can only fit so much information on one page."

Also available as a pdf file.
