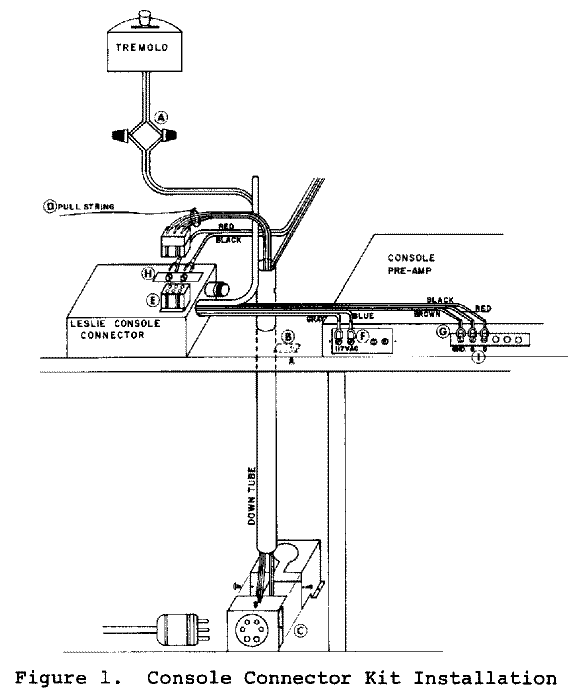

This is the connector chassis used in the 8001, 8002, 8401, 8402 and other ?LeslieConnectorKits.

It is used to connect Hammond Console organs with G-G outputs to 122-style (six-pin, balanced input) Leslies. It also includes provisions for MainEnsembleEcho switching.

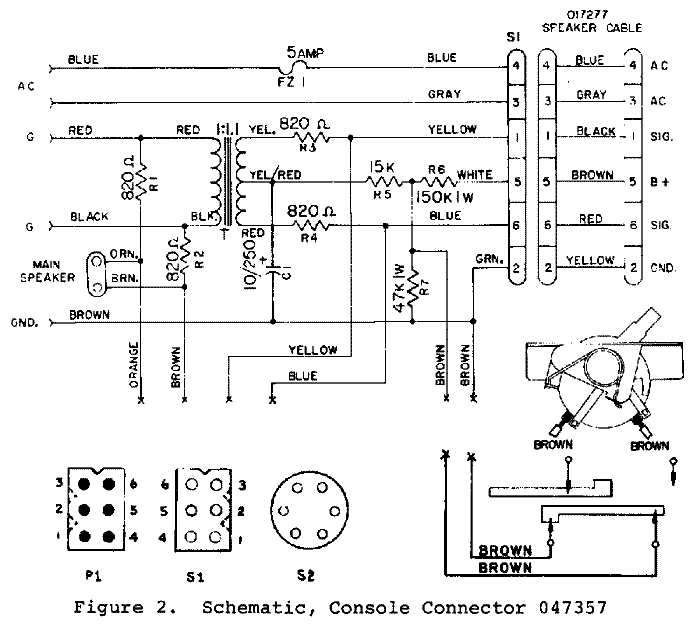

The following schematics were provided by HarveyOlsen.
